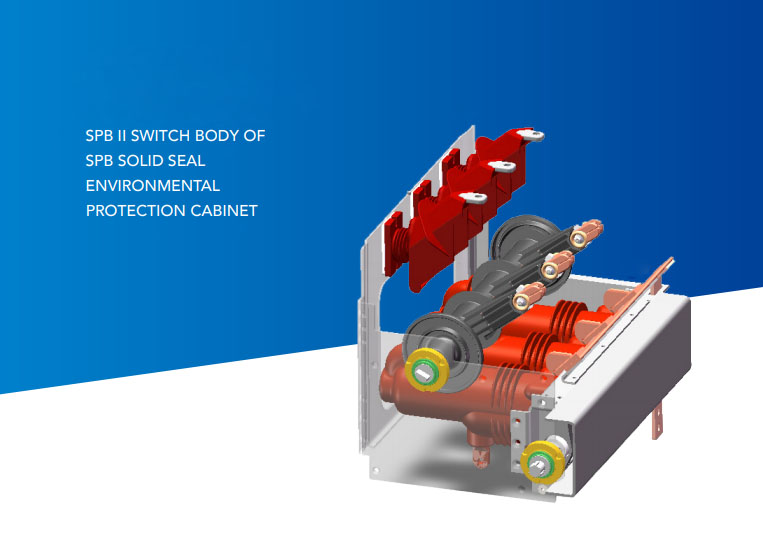

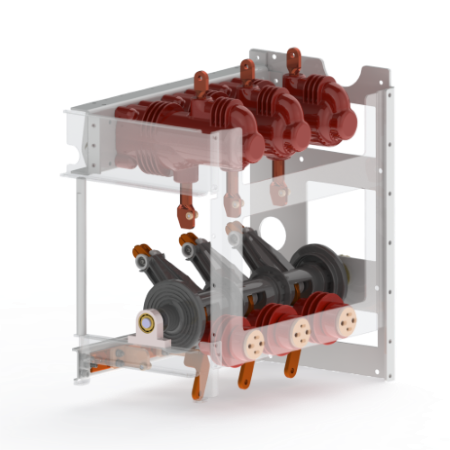

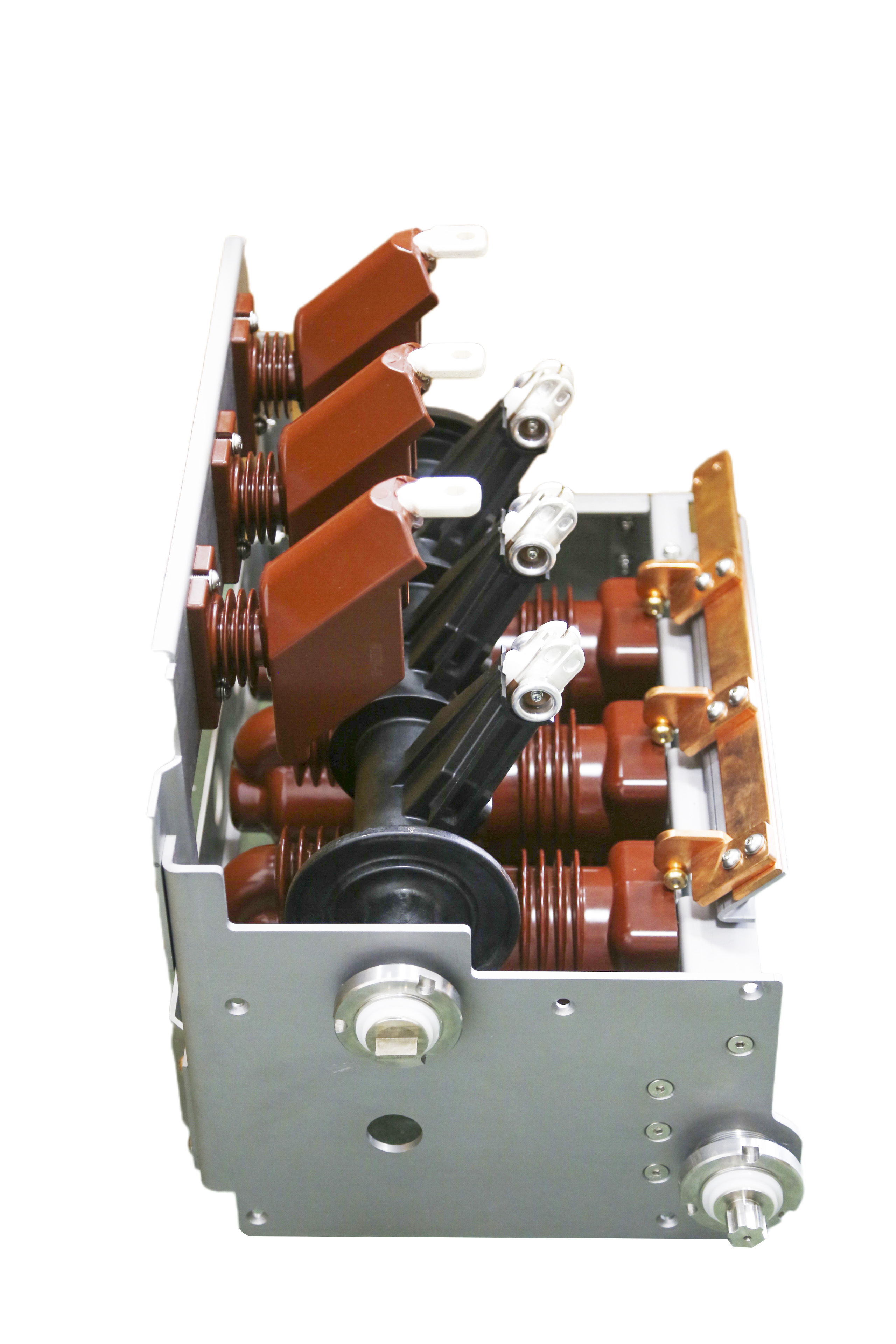

SPB II SWITCH BODY OF SPB SOLID SEAL ENVIRONMENTAL PROTECTION CABINET

SPB II SWITCH BODY OF SPB SOLID SEAL ENVIRONMENTAL PROTECTION CABINET

PRODUCT OVERVIEW

SPB II type indoor high-voltage AC vacuum circuit breaker (hereinafter referred to as circuit breaker) is a power distribution equipment with rated voltage of 12kV and three-phase AC 50Hz, with a three-position isolation switch. It is mainly used to break and close the load current, overload current and short circuit current in the power system. And, it can be used as the main switch element of XGN-12 circuit breaker scheme ring network cabinet, which is used for protection and control in the distribution system, and is mainly used in the distribution ring network system of residential areas, industrial and mining enterprises, high-rise buildings, etc.

REFERENCE STANDARDS

GB/T 11022-2020  High voltage switch equipment and control equipment standards of common technical requirements
GB/T 1984-2014 High voltage AC circuit breaker
B/T 4585-2004 Communication system with high voltage insulator artificial pollution tests

MODEL COMPOSITION AND MEANING

SPBⅡ(G)-12 / T 630 - 20

STRUCTURAL CHARACTERISTICS

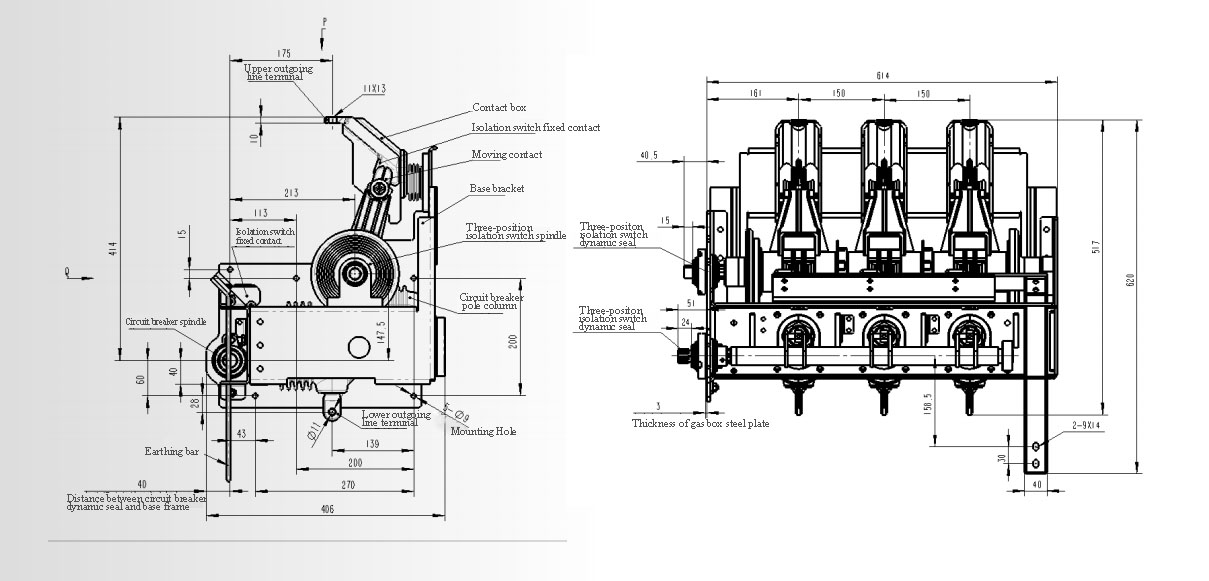

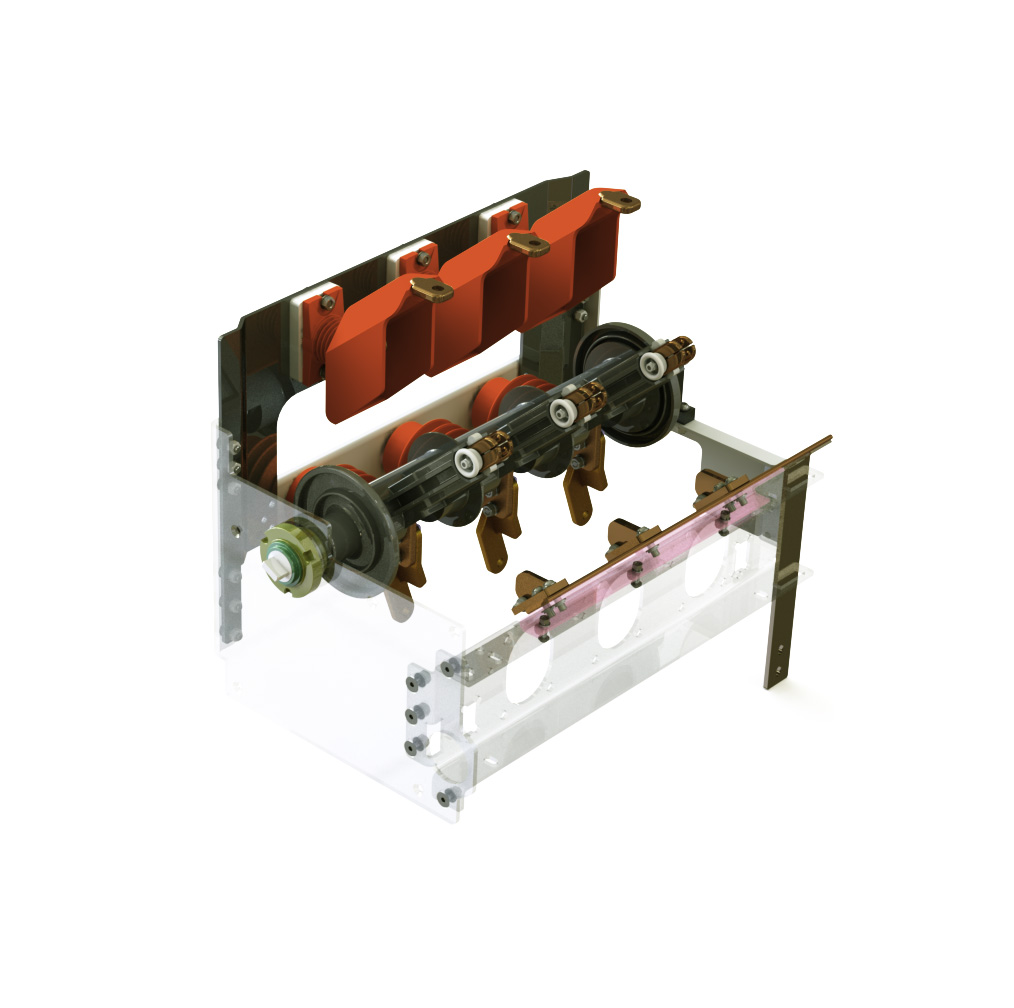

The product is mainly composed of circuit breaker pole, three-position isolation switch, base support, dynamic seal, operating mechanism and so on, and the structure and dimensions as shown in the figure The circuit breaker is equipped with SPD20 spring operating mechanism, and three-position isolation switch is equipped with SPE20 manual operation mechanism, providing thorough interlocking system to ensure that products can run normally.

PRODUCT CHARACTERISTICS

1.Circuit breaker adopts APG solid sealed pole structure, vacuum arc-extinguishing chamber adopts tube type with larger market share. It has the characteristics of stable performance, high insulation performance, steady disconnection performance and low price.

2.Circuit breaker a column of partial discharge is less than 3 PCS, the machine is not more than 5 PCS.

3.The circuit breaker is mainly used for bus side isolating switch, it not only can be connected with the side expansion casing or the top expansion casing, but also connected with the top expansion casing and expansion form flexibly.

4.The circuit breaker has a high degree of modularization, and vacuum circuit breaker and three-position isolation switch are mounted on a base bracket, it lays a foundation for the selection of ring network cabinet breaking components, convenient installation, high assembly efficiency.

TECHNICAL PARAMETERS OF
CLOSING AND OPENING ELECTROMAGNETS
TECHNICAL PARAMETERS OF SWITCH

                                                             AC voltage                                 AC voltage

Rated operating voltage (V) 220                             110  220        110       48     24
Rated operating current  (V) 1.6                              3.6 1.76        5.3      13.7    32
Rated   electrical    power (W) 299                             396 387        583      648   768



THE ENERGY STORAGE MOTOR ADOPTS UNIDIRECTIONAL
PERMANENT MAGNET DC MOTOR TECHNICAL DATA

                                                                                    Rated operating voltage (V)                                                                                                220   110    48    24
Rated electrical power (W) 40
         Normal operating voltage range 85% ~ 110%
 Rated operating current (A)

0.5     1.0   1.8   3.6

Energy storage time (s) ≤15

     Note: The energy storage operation by hand adopts the energy storage handle equipped with the mechanism to operate normally, and its operating force is less than 250N•m.



USE ENVIRONMENT



1. Ambient temperature:-20℃ to 40℃(with a 24 hours average lower than 35℃)

2. Sunshine intensity is not higher than 1000W/㎡ (applied to ring cabinet)

3.  Altitude:Less than 1000m

4. Average daily relative humidity: 95%    Average monthly relative humidity: 90%

      5. No violent vibration turbulence and vertical gradient of no more than 8 °

      6. Installation far away from inflammable, explosion, and strong chemical or intense shaking

      7. In the secondary system of induction electromagnetic interference amplitude is no more than 1.6 kV



Technical Parameter

MECHANICAL CHARACTERISTIC PARAMETERS OF CIRCUIT BREAKER

Number  ITEM UNIT VALUE
1  Rated voltage kV 12
2      Rated frequency Hz 50
3 Rated current A 630
4 Rated short-circuit breaking current kA 20
5 Rated peak withstand current kA 50
6 Rated short-time withstand current (4s) kA 20
7 Rated short-circuit making current (Peak) kA 50
8

Mechanical life time

TIMES

10000

(M2 level)

9 Rated short-circuit current breaking times TIMES

30

(E2 level)

10

Power frequency withstand voltage (1min):

Phase to phase、phase to earth /Across isolating distance

kV 42/48
11

Lighting impulse withstand voltage(Peak)

Phase to Phase、Phase to earth/Across isolating distance

kV 75/85
12

Secondary circuit (1min)

Power frequency withstand voltage

kV 2
13 Rated operating sequence O—0.3s—CO—180s—CO
Number ITEM UNIT           VALUE
1 Contact  distance       mm         9±1
2     Contact over-travel   mm 3~4
3 Average opening speed m/s 1.2±0.2
4 Average closing speed m/s 0.6±0.2
5 Contact closing bounce time ms ≤2
6 Three phase division、different closing periods ms ≤2
7 Resistance of each phase conducting loop μΩ ≤60
8 Closing time ms 25~55
9 Opening time ms 18~55
10 Rated contact force N 1800+200

SOME TECHNICAL PARAMETERS OF DIS-CONNECTOR

Number ITEM UNIT           VALUE
1  Rated voltage kV 12
2      Rated frequency Hz 50
3 Rated current A 630
4 Rated peak withstand current kA 50
5 Rated short-time withstand current (3s) kA 20
6 Rated short-circuit making current (Peak) kA 50
7

Mechanical life time

TIMES

3000

(M1 level)

8

Power frequency withstand voltage(1min):

Phase to Phase、Phase to earth/Across isolating distance

kV

42/48

9

Lighting impulse withstand voltage(Peak)

Phase to Phase、Phase to earth/Across isolating distance

kV 75/85
10 Rated contact positive pressure N 160+200
11 Resistance of each phase conducting loop μΩ ≤60
12 Interval center distance mm 150±2
13 Rated operating force N ≯250
14 Three phase division、different closing periods ms ≤3
15 Contact  distance mm 125±5

TECHNICAL PARAMETERS OF SWITCH

Number ITEM UNIT           VALUE
1  Rated voltage kV 12
2      Rated frequency Hz 50
3 Rated peak withstand current kA 50
4 Rated short-time withstand current (2s) kA 20
5 Rated short-circuit making current (Peak) kA 50
6

Mechanical life time

TIMES

3000

(M1 level)

7

Rated short-circuit making times (E2 level)

TIMES

5

8 Rated operating force N ≯250



OPERATION SWITCH

When operating under load, the product should comply with the relevant national or industrial safety regulations. Illegal operations are strictly prohibited. Before the operation, it should be trained by professionals.

1.Circuit breakers Energy storage operation

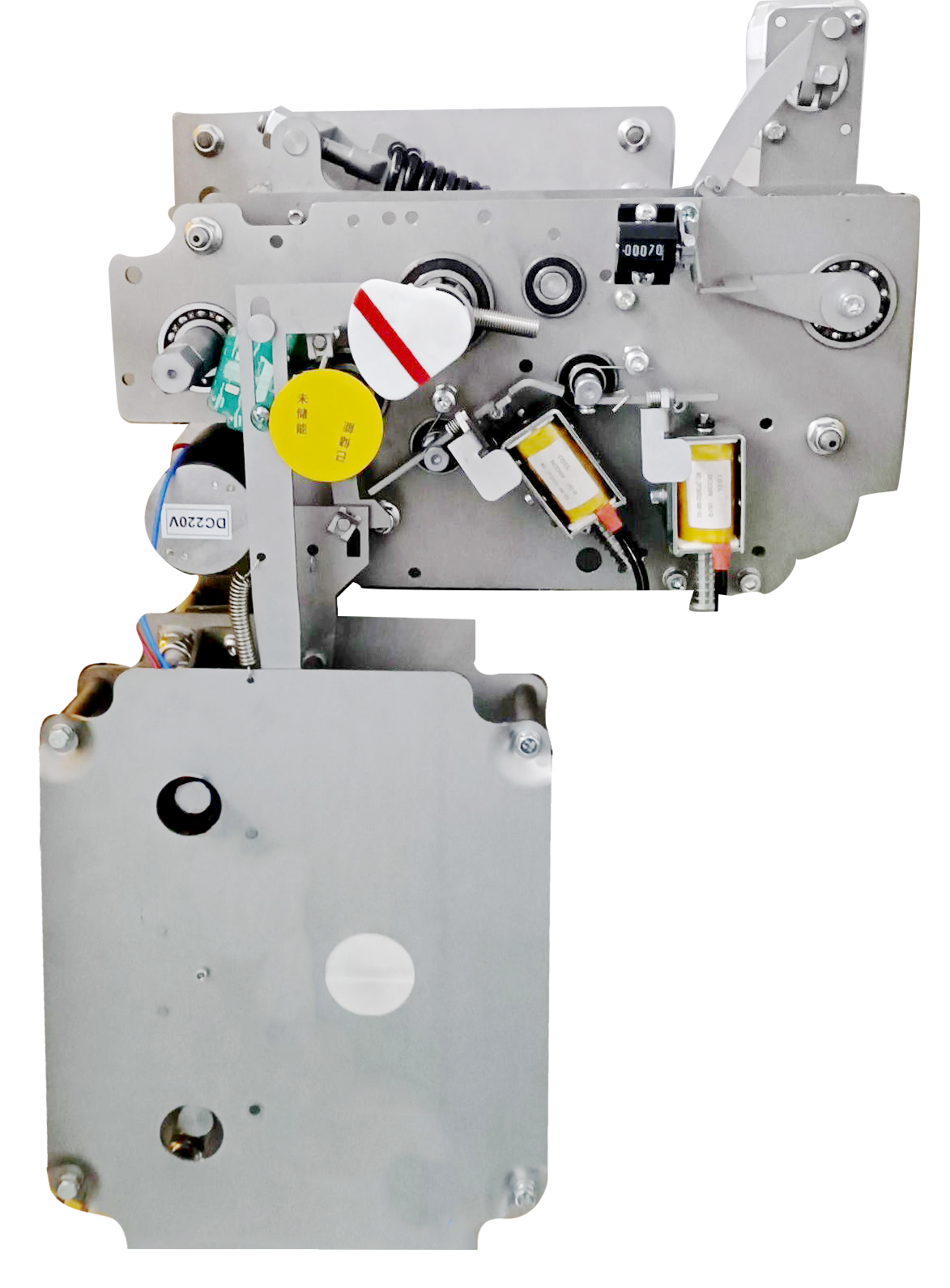

In order to complete the closing operation, the energy storage operation should be completed first. SPD20 spring operating mechanism with manual and electric energy storage. During manual operation, the energy storage handle is first inserted into the manual energy storage position of the mechanism to carry out manual energy storage. When the energy storage is in place, the energy storage handle idles to complete the manual energy storage. When electric energy storage is carried out, the corresponding power supply is connected to the energy storage motor, and the motor completes energy storage. When the energy storage is completed, the power supply is cut off through the travel switch and the motor stops working. Between manual energy storage and electric energy storage, there is an electric chain to ensure that the motor is not allowed to run when the manual operation is carried out, so as to ensure the safety of people and equipment.

2.Circuit breaker closing operation

When the operating mechanism completes the energy storage operation, the closing operation can be carried out. The closing operation can be completed either manually or through the closing trip electromagnet.

3.Reclosing operation

When the circuit breaker in the closing state, at this point if the complete energy storage operation, the circuit breaker in the closing has energy storage state. Through the reclosing relay, the reclosing operation can be completed. The reclosing operation can play a protective function and minimize the power outage caused by temporary faults.

4.Circuit breaker closing operation

When the circuit breaker is in the closing state, the opening operation can be carried out. The opening operation can be operated manually or electrically. When the opening button is pressed and the electromagnet is connected to the power supply, the opening operation can be completed. And when the line is in short circuit conditions, the protection CT sends out the overcurrent signal, through the protection device output opening command and complete the protection opening.

5.Isolating switch closing and opening operation

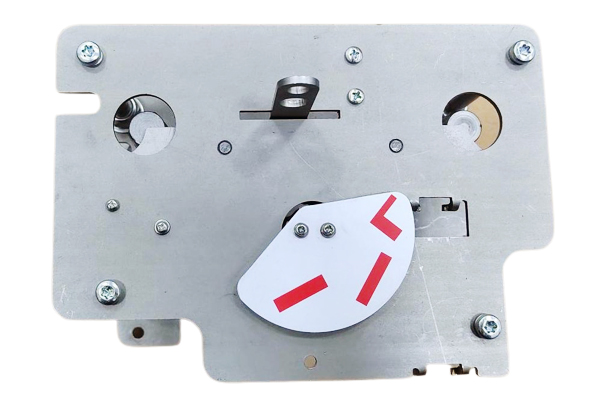

When the circuit breaker is in the opening state and only the circuit breaker is in the opening state, the isolation can be operated by opening and closing. Insert the operating handle of the isolation switch into the corresponding hole of the operating mechanism to complete the switching operation of the isolation switch.

6.Earthing switch closing and opening operation

For more product details, click to download PDF to view!
