Secondary Socket Interlocking Device

Download

Medium Voltage Switchgear Components

Secondary Socket Interlocking Device

VD4/VS1 Secondary Socket Interlocking Device

VD4/VS1 Secondary Socket Interlocking Device

Get A Quick Quotation

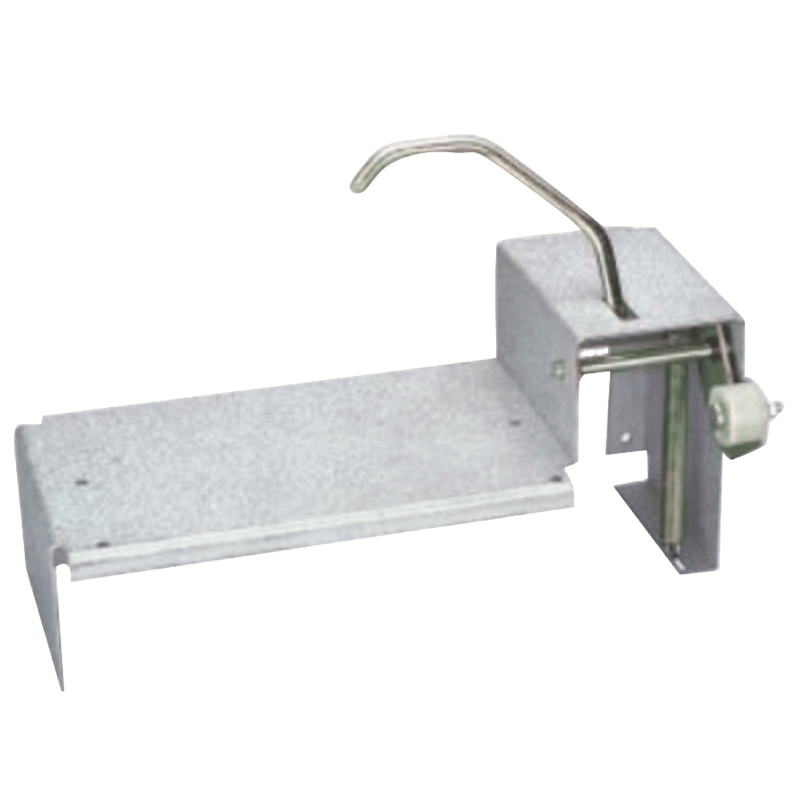

This secondary Socket interlocking device locate at upper of switchgear which help control cabinet work.

VD4/VS1 Secondary Socket Interlocking Device

Compoment list of secondary socket interlock mechanism 5X.573.010

No.	Item	Code	Qty
1	Support	8XS.224.021	1
2	Rollar	8XS.224.021	1
2	Tension spring	8XS.288.015	1
3	Tension spring	8XS.288.015	1
4	Interlock rob widing	5XS.174.017	1
5	Shaft	8XS.200.020	1
6	Split baffle ring Φ6	GB896-88	2
7	Screw	8XS.900.010	1
8	Nut M5	GB6170-86	1
9	Wahser Φ5	GB93-87	1
9	Wahser Φ5	GB97.1-85	1

Configuration and installation dimensions for secondary socket interlock 5XS.573.010

VD4/VS1 Secondary Socket Interlocking Device

Factory Show

VD4/VS1 Secondary Socket Interlocking Device

For more product details, click to download PDF to view!
